The safety of the ski slopes is guaranteed by specially designed fixed metal structures.
We offer the following services to our customers: technical advice during the inspection, quotation and installation • rendering • turnkey installation on request • seasonal maintenance on request
The structures vary according to the type of obstacle or hazard, the speed of the stretch, the morphology of the slope and the type of terrain. We offer metal structures in various forms, from which you can choose the most suitable solution, counting on the support of our specialised technicians.
Consisting of interchangeable galvanised ø159 mm steel tubes. The modularity of the structure guarantees maximum flexibility, allowing the height to be varied according to requirements even after their initial installation. Possibility of installing a second protective net.
Ski slope: agonistic, touristic and skiweg.
In special cases or on request, it is possible to install the anti-liftoff system for straight poles: this consists of a steel cable to be anchored to the pole at the bottom and then fixed to the ground using the most suitable system for the terrain (in most cases a grid with 5 rods is used).
The telescopic pole is constructed from two round tubes, Ø 114 mm and 102 mm respectively, 5 mm thick. The smaller section is inserted into the larger one making this pole modular and usable at different heights up to a maximum of approximately 7 m. The telescopic pole is particularly suitable for situations where the slope is narrow and bordered by rock faces: the base can also be installed directly on the rock. Tubular lattice structure. The modular elements allow the pole to be made in different sizes and make it possible to modify both the vertical and horizontal franc. Possibility of installing the second protection net.
Ski slope: agonistic and touristic.

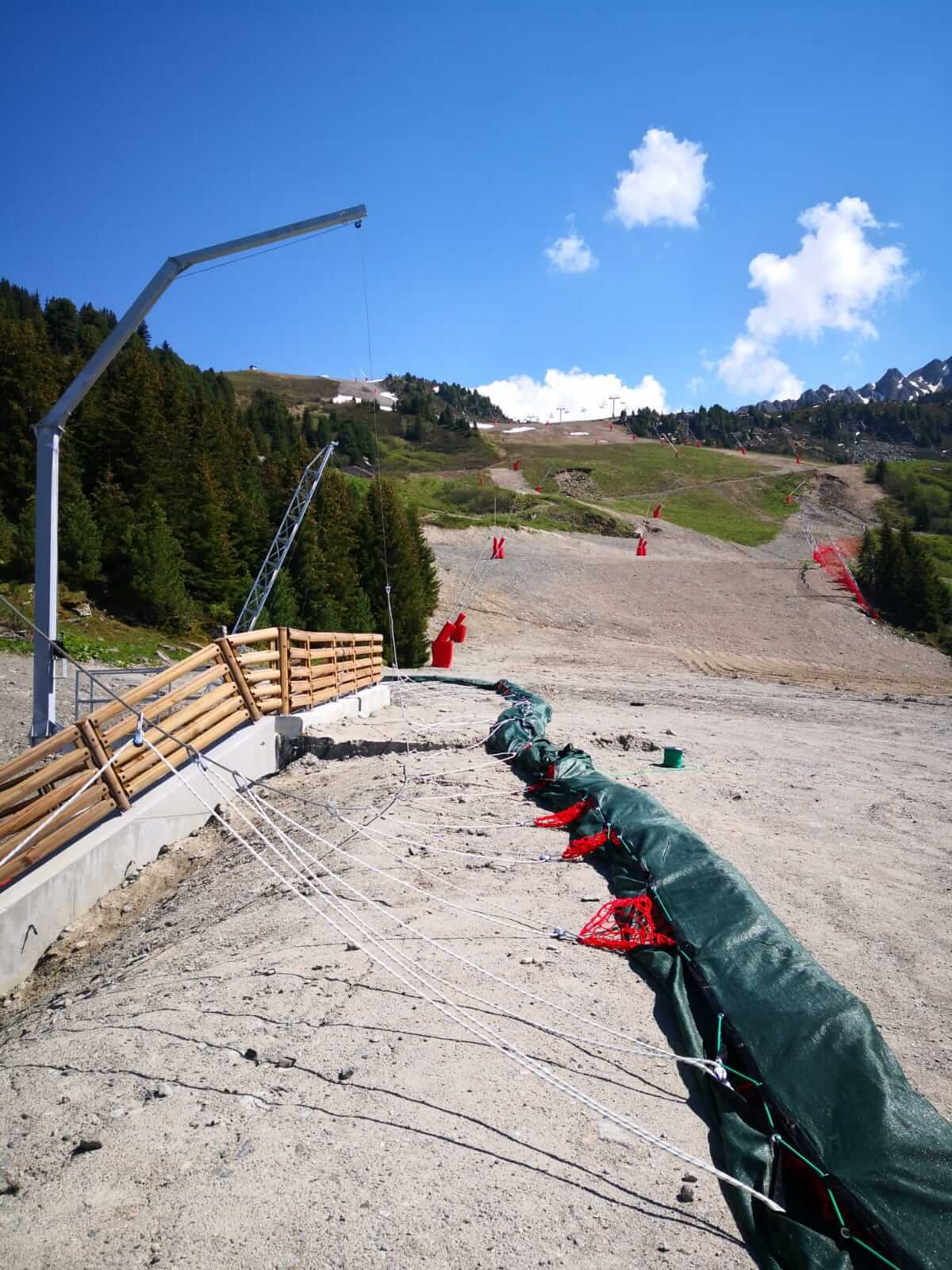

BP and BP JUNIOR
Made up of square tubes bolted together, they are suitable for any type of installation and do not require any bracing: the self-supporting structure can withstand high loads. Possibility of installing the second protection net. They can be installed overhanging, using a crossbar, or directly on the base to be buried or concrete plinth. Available:
BP standard, 8m or 9m hight
BP JUNIOR, smaller (standard 6m hight).
Ski slope: agonistic, touristic.
Tubular lattice structure. The modular elements allow the pole to be made in different sizes and make it possible to modify both its vertical and horizontal dimensions. Possibility of installing a second protective net.
Ski slope: agonistic e touristic.
Made of several elements bolted together and mounted cantilevered on a lattice base, which in turn is anchored to large plinths by means of anchor bolts and an additional support foot.
Ski slope: agonistic e touristic.
LAMP AND UMBRELLA POLE
Made from 5 mm thick hot-dip galvanised steel tubes ø 114 mm. Particularly suitable for ski trails or sections of trail with a low gradient and moderate speed, they are easy to install using concrete plinths or steel cages to be buried.
Ski slope: touristic (low speed) and skiweg
C and C NEW pole
Made of steel tubes with a diameter of 114.5 mm and subjected to a hot-dip galvanisation process, they are installed using either concrete plinths or steel cages to be buried underground. Perfect for use on the edge of slopes without encroaching on the skiable area. Available::
C pole standard,
C pole NEW, narrower calender lower (5m or 6m)
Ski slope: agonistic technical disciplines (C pole), touristic and skiweg (C NEW pole).
GROUND ANCHORING SYSTEMS
The anchorage systems for Type A Structures respond to different types of terrain and customer needs:
Concrete plinths, in non-complex soil situations
Burying bases, suitable for reinforced soil or difficult soil situations
PLANKING AND WALKWAY
The planking is a system made up of wooden boards of various sizes and is mainly used for snow containment at the base of the structure. This system also allows a useful reference point for snow groomers. It is the ideal solution for structures on narrow streets, narrow roads or skiweg.
The walkway/footbridge is an optional safety system for staff involved in nets management and maintenance on BP model overhanging poles. The particular configuration of this walkway allows both stable use on the single reference pole and the possibility of rapid repositioning on the other poles in the section during maintenance of the nets.
A smaller version can also be used on BP Junior poles.
NETS FOR PROTECTIVE STRUCTURES
Made of high-strength polyethylene (HDPE) with a water-repellent and UV-stabilised treatment, they are hand-knotted with a 12 mm braid perimeter border. Also available in a certified version, with pieces of netting for wear and tear testing.
Service on request: laboratory tests on tensile strength, energy absorption and influence of UV exposure.
MESH 5×5 CM, colour red or blue. Standard dimensions: 34207 per m² 34207-02 50x4m 34207-08 25x4m 34207-04 15×4 m other dimensions on request MESH 7×7 CM, colour red or blue. Standard Sizes: 3420 per m² 3420-02 50x4m 3420-07 25x4m 3420-04 15×4 m MESH 10×10 CM, colour red or blue. Standard size: 34201 per m² 34201-19 25×4 m
The SPM sliding panels are divided into:
panels suitable for competitive use (FIS competitions), made of woven mesh coated with a special PVC that maintains the characteristics of extreme elasticity even at very low temperatures; panels suitable for tourist use, lower than the others, but similarly resistant.
All models, except for LIGHT and AMERICA, can be customised with a one-colour screen print. Four-colour digital printing is also available.
The ANTICUT sliding sheets have high-strength filaments that make them strong and safe and suitable for top-level competitions.
342104 VHR sliding panel PVC, height 104 cm with 0.9×0.9 cm mesh. Edged and eyelet. Red colour. Weight 660g/sqm.
342104-AMER AMERICA sliding panel, height 105 cm with multi-hole border. Colour blue or red. Weight 500g/sqm.
342104-LIGHT LIGHT sliding panel, height 105 cm, edged and eyelet. Colour blue or red (on request). Weight 200 gr/sqm.
342050 WORLD CUP sliding panel, in PVC, 208 cm high with 0.9×0.9 cm mesh. Bordered and eyelet. Colour red. Weight 660g/sqm.
3421050-CR CUT RESISTANT sliding panel, with high-strength filaments, height 208 cm, edged and eyelet. Colour red. Weight 860 g/m2.
